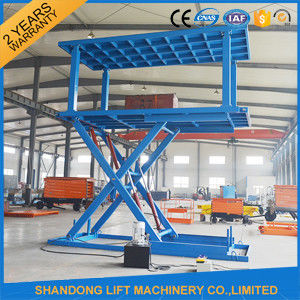

5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System

5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System
5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System

Duży Obraz :  5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: SDLIFT Or OEM
Orzecznictwo: CE ISO SGS
Model Number: SJG3-3
Zapłata:
Minimum Order Quantity: 1 UNIT
Cena: USD4980- USD12080 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year

5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System

Opis
Application: Garage Elevator Lift Underground Vertical Car Parking System Safety device: Explosion-Proof Lock Valve
Motor: From Italy or Chinese famous brand Lift Drive: Hydraulic Car Lift
Load Capacity: 1ton - 20ton (as request) Lift height: 1.5m - 12m (as request)
Color: red, grey, yellow, blue, or as your optional Supplier: Made In China
Material: high strength Manganese Steel
High Light:

stacker car parking system

,

automated car parking system

Garage Elevator Lift Underground Vertical Car Parking System



with 2 Years Warranty



Application:



Garage Elevator Lift Underground Vertical Car Parking System can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the electric car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



Safety:



1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.

2. The work table would equipped the guardrail to guarantee the safety.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.





Configuration:



1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 110*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Parts showing:



5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 0





The models we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

600mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

700mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

700mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

750mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

850mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

950mm

220V, 240V, 380V or 400V

 The Double Deck Hydraulic Car Lift Double Platform Car Parking Lift can be customized as your detailed size.









The products:



5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 1



The Certificates:



5T 3M Garage Car Elevator Lift Underground Vertical Car Parking System 2



Our services:



1) The Double Deck Hydraulic Car Lift Double Platform Car Parking Lift can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
