stationary hydraulic scissor lift table
, warehouse pallet scissor lift
, hydraulic cargo lift table

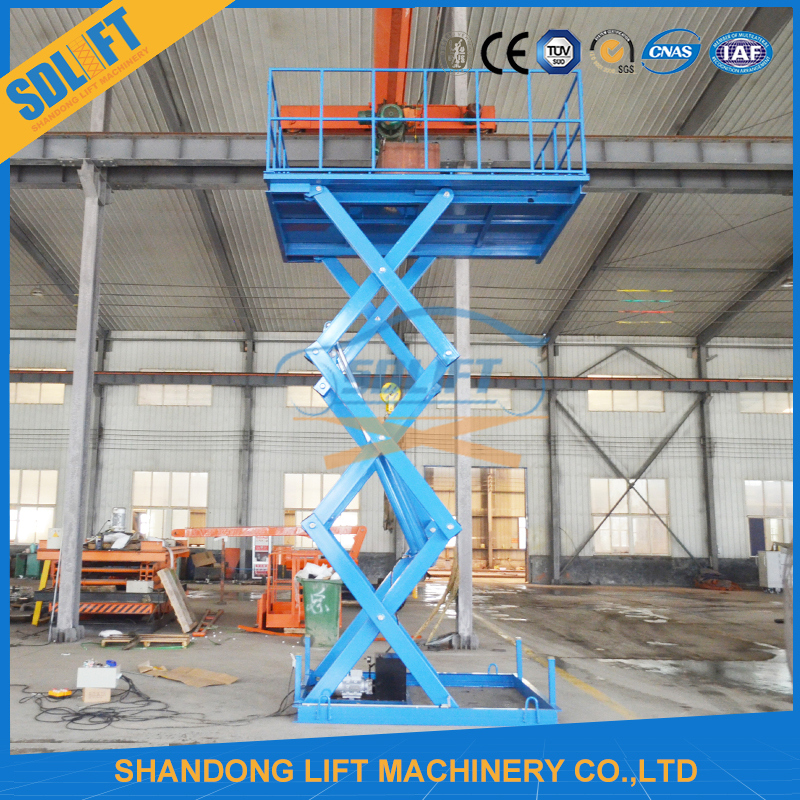

Stationary Hydraulic Scissor Lift Cargo Warehouse Pallet Scissor Lift Table
Stationary Hydraulic Scissor Lift Cargo Warehouse Pallet Scissor Lift Table:
Application:
The Hydraulic Scissor Lift is convenient, efficient and safe ways to transport cargo from one floor to another.
The scissor lift table can be installed in a pit, ensuring stability and safety, and have been especially designed to lift cargo and cars with the greatest of ease.
The models we supplied for clients:
|
MODEL
|
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
| SJG0.3-2 |
0.3T |
1.5m x 1.5m |
2m |
400mm |
220V, 240V, 380V or 400V |
| SJG0.5-3 |
0.5T |
2m x 1.8m |
3m |
500mm |
220V, 240V, 380V or 400V |
| SJG1-4.5 |
1T |
2.1m x 1.5m |
4.5m |
650mm |
220V, 240V, 380V or 400V |
| SJG1.5-4 |
1.5T |
2.2m x 1.6m |
4m |
600mm |
220V, 240V, 380V or 400V |
| SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
| SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
| SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
| SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
| SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
| SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
| SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
| SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
| SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
| SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
| SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
| SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
|
The hydraulic scissor lift can be customized as your detailed size.
|
The parts showing:
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1. The lift equipped with antiskid plate to prevent slipping, it is enough safe when it works.
2. The work table would equipped the guardrail to guarantee the safety.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4. The lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
The Certificates:
Our services:
1) All the scissor lifts are tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.
