700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV

Orzecznictwo
Chiny Shandong Lift Machinery Co.,Ltd Certyfikaty
Chiny Shandong Lift Machinery Co.,Ltd Certyfikaty
Opinie klientów
I came to order, I saw a very large factory with professional advanced equipment,clean workshop, first-class raw materials, a very trustable supplier!

—— Mr. Marc - Belgium

Very professional for products. Very good services during the order!

—— Mr. James - Australia

Exclent Lift Platform Lift ! Professional Saler ! Good Business with Shandong Lift.

—— Mr. Mushi - India

Bardzo dobry biznes z Shandong Lift! Będzie współpracować coraz więcej w przyszłości!

—— Pan Bruce - Nowa Zelandia

Im Online Czat teraz

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV
700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV

Duży Obraz :  700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV

Szczegóły Produktu:
Place of Origin: CHINA
Nazwa handlowa: SDLIFT
Orzecznictwo: CE
Model Number: SJG5-6
Zapłata:
Minimum Order Quantity: 1uint
Cena: USD1000-15000/unit
Packaging Details: Metal Frame + Fumigation wooden box
Delivery Time: 15 working days from deposit
Payment Terms: T/T, L/C
Supply Ability: 3500unit/year

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV

Opis
Product's name:: Hydraulic Warehouse Lift Elevator Lift Mechanism: Hydraulic + Lift Chain
Rated Loading Capacity: 700kg Table Size: 1800 x 1300mm
Max. Lifting Heigh: 4000mm Application: cargo lift for warehouse or work shop
Lift speed: 3-6m/min Weight: 800kg
Platform: Anti-skid Product Name: Warehouse Elevator Lift
self/closed height: 150mm
High Light:

material lifting equipment

,

freight lift elevator

700kgs 4m Warehouse Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV:



Product Application

1. The Hydraulic Warehouse Lift Elevator is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors.
2. To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.

3. It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; it is installed in the pit or the ground floor to convey the goods from one working level to

another.

4. The control panels are available at the designated floors and one the lift platforms.



Safety control of Hydraulic Warehouse Lift Elevator​



Hydraulic Warehouse Lift Elevator not only have all safety device of the traditional elevator, but also have the special safety system hereinafter.



1. Spillover valve, it can prevent high pressure when the machine moves up.

2. Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.

3. Manual pump: it can move up the nearest floor and open the door when you meet an emergency.

4. Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.

5. Overload protection, when the goods on the platform is over the capacity, the overload protect device will work to stop the platform lifting up.

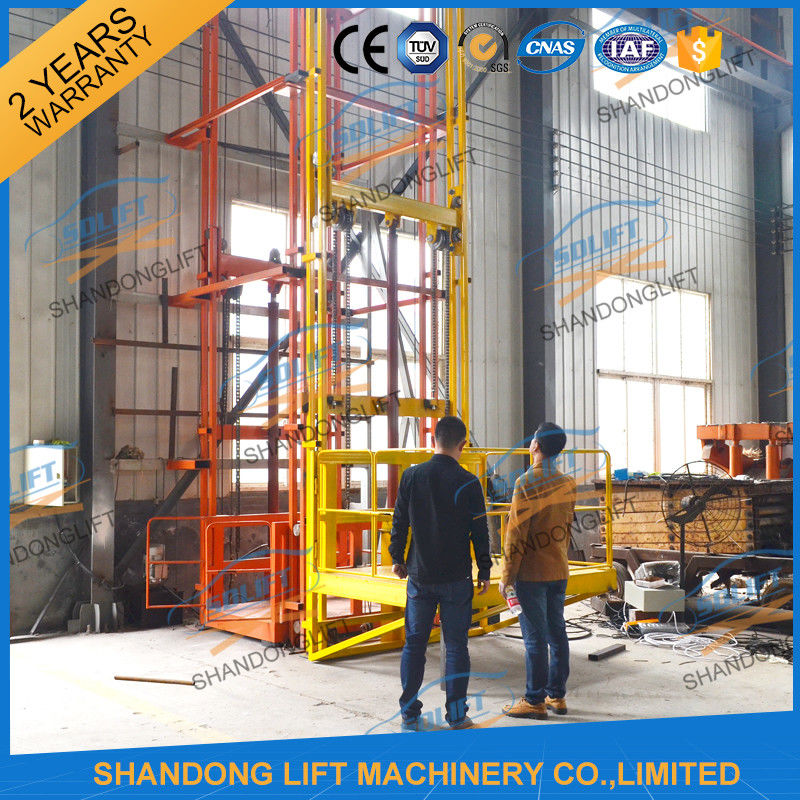

Product showing in our factory: Client from Bangladesh inspect Hydraulic Warehouse Lift Elevator in April 2017

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 0700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 1

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 2700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 3



Detailed Images



700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 4700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 5

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 6700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 7

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 8700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 9



Our Service



700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 10



Pre-Sales Service

1) We can design the customerized Warehouse Elevator Lift as per your requirement.

2) The most suitable Warehouse Elevator Lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.



After-Sales Service

1) 2 years warranty for whole machine without man-made faults.

2) We will send you parts for free if there are any non-human factors faults during warranty time.

3) Supply 24-hours technical assistance by email, telephone or other communication online.

4) We could reply you in 2 hours after received your any questions even on weekend and holiday.  Engineers are available to your country if necessary.



Packing & Delivery700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 11



Certifications

700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 12700kgs 4m Warehouse Elevator Lift Vertical Guide Rail Lift Vertical Cargo Lift Elevator CE TUV 13




Model Loading Capacity Lifting height Min.height Table  size Power
SJG0.5-4.5 500kg 4500mm 150mm 2000*1500mm 2.2kw
SJG1.0-4.5 1000kg 4500mm 150mm 2000*1500mm 3kw
SJG2.0-4.5 2000kg 4500mm 150mm 2000*1500mm 3kw
SJG3.0-4.5 3000kg 4500mm 160mm 2000*1500mm 3kw
SJG0.5-7.5 500kg 7500mm 150mm 1200*1200mm 1.5kw
SJG1.0-7.5 1000kg 7500mm 150mm 1800*1400mm 2.2kw
SJG2.0-7.5 2000kg 7500mm 150mm 2000*1500mm 2.2kw
SJG3.0-7.5 3000kg 7500mm 160mm 2000*1600mm 3kw
SJG1.0-10.5 1000kg 10500mm 150mm 1800*1400mm 2.2kw
SJG1.0-14 1000kg 1400mm 150mm 1800*1500mm 2.2kw
SJG3.0-4.5 3000kg 4500mm 160mm 5000*3000mm 4kw
