Szczegóły Produktu:
|
| Aplikacja: | CE 6,65 m 500 kg Elektryczny podnośnik nożycowy Hydrauliczny podnośnik nożycowy do magazynu | Bezpieczne urządzenie: | Przeciwwybuchowy zawór odcinający |
|---|---|---|---|
| Podnieś napęd: | Hydrauliczny podnośnik samochodowy | Silnik: | Z Włoch lub znanej chińskiej marki |
| Materiał: | Stal manganowa o wysokiej wytrzymałości | System podnoszenia: | System hydrauliczny |
| Zasilacz: | 220V/240V/380V/415V (na żądanie) | Kolor: | czerwony, szary, żółty, niebieski lub jako opcjonalny |
| Struktura: | konstrukcja podnośnika nożycowego, | Ładowność: | 500 kg |
| Rozmiar platformy: | 1800mm * 1500mm | Wysokość podnoszenia: | 6650mm |
| High Light: | podnośniki do transportu materiałów,hydrauliczna platforma podnośnikowa,500 kg Ładowanie elektrycznego podnośnika nożycowego |
||
CE 6.65m 500Kgs Electric Scissor Lift Hydraulic Scissor Cargo Lift for Warehouse:
Application:
The electric scissor lift can be used to lift cargo or materials with different levels, suitable for cargo between stairs, from basement to first floor, to second floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the car lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
Parts showing:
Configuration:
1) Platform Material: anti-slip steel rectangular tube + sheel checkered plate
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 220v, 240v, 380v or any others
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
The models we supplied for clients:
|
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
|
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
700mm |
220V, 240V, 380V or 400V |
|
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
|
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
|
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1050mm |
220V, 240V, 380V or 400V |
|
SJG20-5 |
20T |
6m x 3m |
5m |
950mm |
220V, 240V, 380V or 400V |
|
The electric scissor lift tables can be customized as your detailed size. |
|||||
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps car lift tables to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car lift tables are passed 1.2 times loading test before leaving factory.
Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the car lift tables .

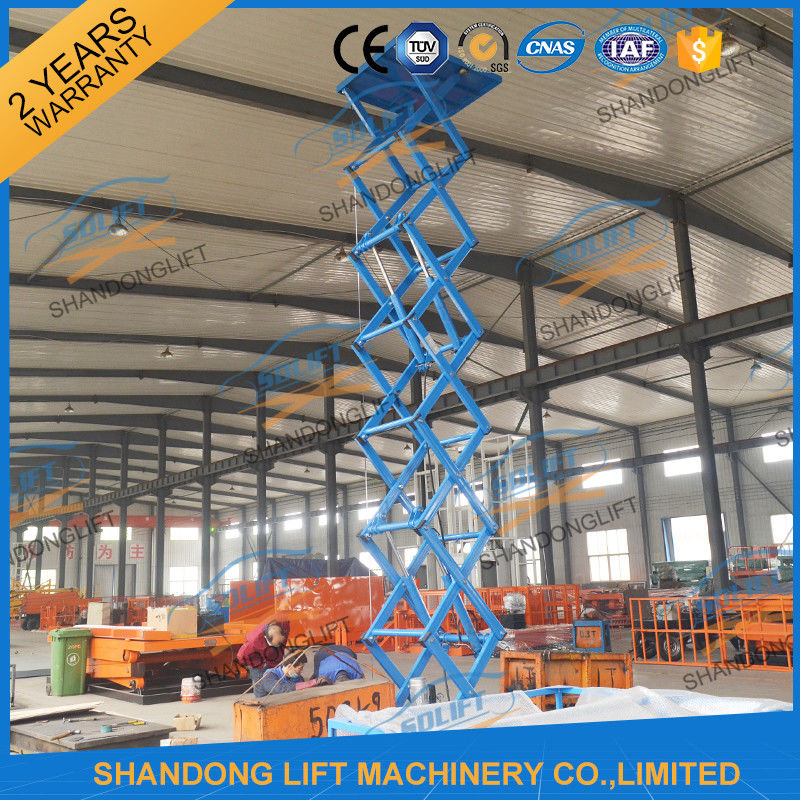

Products showing:
Customer visiting:
