Szczegóły Produktu:
|
| Usage: | Wheelchair Stair Lift Hydraulic Vertical Wheelchair Platform Lift | Warranty: | 24 months |
|---|---|---|---|
| Rated Loading Capacity: | 250kg | Min. Lifting Height: | 80mm |
| Max. Lifting Height: | 6000mm | Table Size: | 1200mm(L) * 1000mm(W) |
| Control: | Calling box and remote controller | Material: | Stainless steel or aluminum alloy with Powder coating |
| Lift Drive: | Hydraulic | Lift Mechanism: | Lift Chain |
| OEM: | Available | ||
| High Light: | patient lifting hoists,disability lifting equipment |
||
CE Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs:
Application:
The hydraulic wheelchair lift for disabled people is a device to transport wheelchair or motorized scooter and individual from one floor to another. It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.
Lift height: 1m - 10m
Load capacity: 250kg - 500kg
Material: stainless steel or aluminum alloy with Powder coating

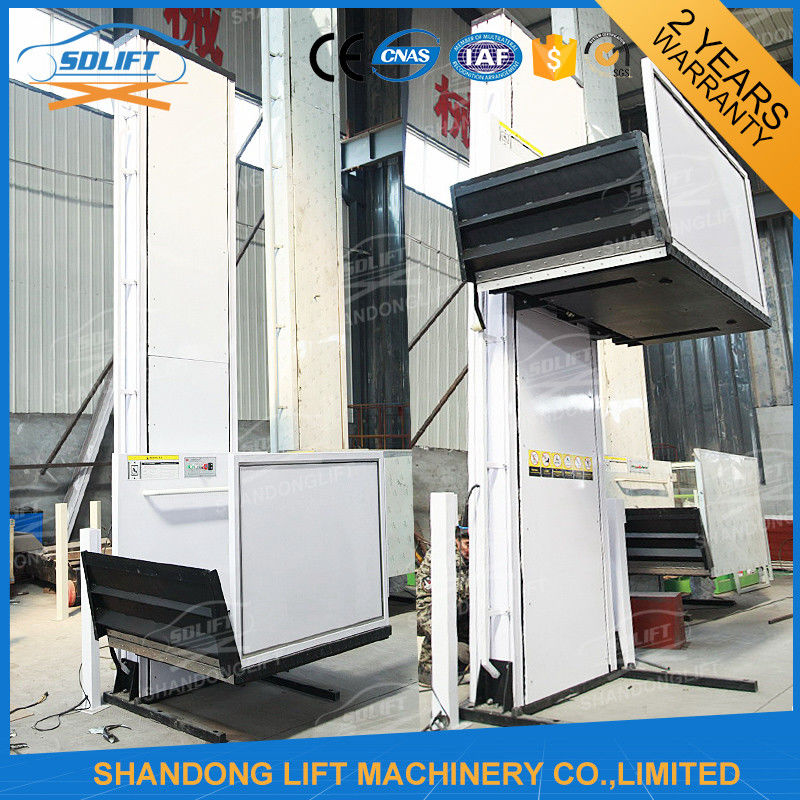

Production pictures:
Technical Parameters:
| Specification: | |
| Model | SJG0.25-3 |
| Load capacity | 250kg |
| Max. Platform Height | 3000mm |
| Platform size | 1200mm(L) x 1000mm(W), 1430mm(L) x 900mm(W) |
| Dimension | 1450mm(L)*1250mm(W)*4100mm(H) |
| Min Platform height | 60mm |
| In and out | 180°in and out |
| Self weight | 750kg |
| Material | Stainless steel or aluminum alloy with Powder coating |
| Power Input | 220V/50HZ/1PH/2.2KW |
| Convenient operation design: | |
| Drive System | Hydraulic |
| Control Mode | Inching Switch |
| Drive Control | Self-resetting system |
| Calling device | Calling box (Located at ground and upstairs), remote controller (optional) |
| Column switch | Two column switches, one is on the ground floor, one on the first floor |
| Working temperature | From -10°~60°C |
| Overload | Protection over current relay |
| Automatic ramp | 75°ramp Range |
| Working Condition | Both indoors and outdoors |
| Installation | Non-pit installation, directly fixed to concrete floor |
| Safety Device: | |
| Safety Interlock: | Lock the platform when it is out of control |
| Emergency Stop | The lift can be stopped immediately in case of any emergency |
| Emergency Lowering | The platform can be lowered by manual down button in case of power failure |
| Safety Sensor | The lift will be stopped immediately if the safety edge meets obstacle when going down. |
| Auto-flap ramp | Turn up to max 75°and prevent the wheelchair outside |
Detailed views:
Installation pictures:
The Certificates:
Our services:
1) We can design the hydraulic wheelchair lift for disabled people as per your requirement.
2) The suitable hydraulic wheelchair ift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
