Szczegóły Produktu:
|
| Aplikacja: | magazynowy mechaniczny podnośnik nożycowy | Mechanizm podnoszący: | Podnośnik nożycowy |
|---|---|---|---|
| Panel sterowania: | Każde piętro | Rampa załadunkowa: | można dodać za Ciebie |
| Platforma: | Antypoślizgowa płyta w kratkę | System podnoszenia: | System hydrauliczny |
| Bezpieczne urządzenie: | Przeciwwybuchowy zawór odcinający | Tryb sterowania: | Panel sterowania i skrzynka sterownicza |
| Kolor: | pomarańczowy, czarny, zielony lub jako twoja prośba | ||
| High Light: | podnośniki do transportu materiałów,podnośnik hydrauliczny,przeciwwybuchowy stacjonarny hydrauliczny podnośnik nożycowy |
||

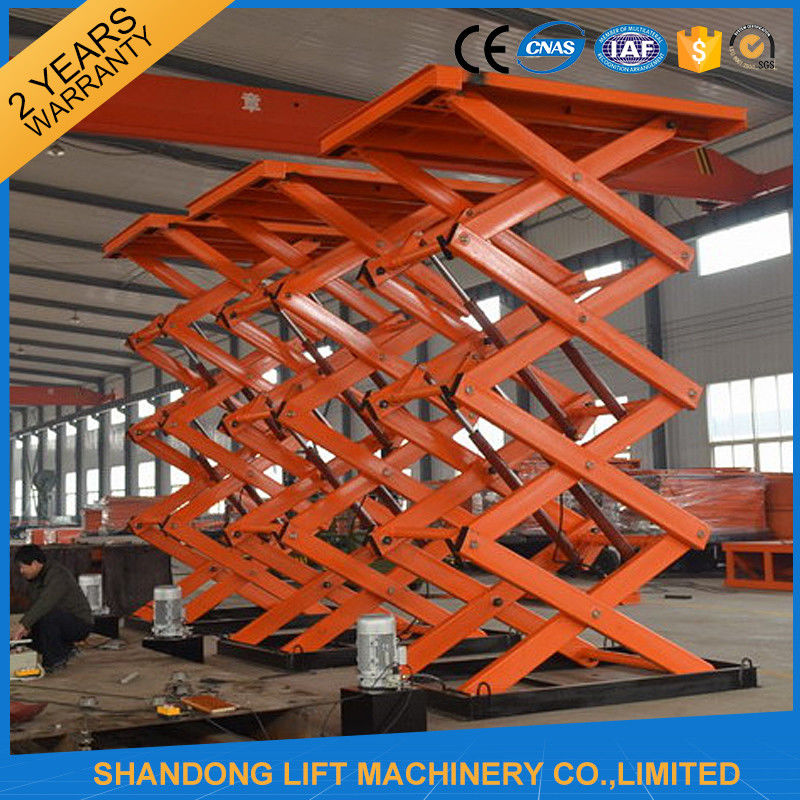

Adjustable hydraulic stationary warehouse mechanical scissor lift
in China with CE
DESCRIPTION:
A. It is a ideal device which mainly used in goods delivery.
B. It used in between floors of a building, 3-D garage and underground garage.
C. The hydraulic system with fall and overload protection device.
D. It has operate buttons to achieve multi-point control.
E. Stable structure, carring capacity, easy maintenance and installation.
F. According to the requirements, choose different alternative configurations.
G. It involves ball lift platform, roller lift platform and auto stationary lift platform.
Configuration:
1) Lift height: 5m
2) Lift loading capacity: 5T
3) Lift platform size: 5.5m*2.7m
4) Platform Material: rectangular tube + checkered anti-slip plate
5) Support scissors: high strength Manganese Steel.
6) Hydraulic system: 380V/5.5Kw or 220v or as your request
7) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
8) Piston Rod: hard chromium plating surface.
9) High-pressure oil pump: from Italy or Chinese famous brand.
10) Hydraulic pipe: high pressure pipe with double expanded metal protected
11) Hydraulic oil: summer 46#, winter 32#
12) Controller: 1 control box below, 1 hand controller above platform
The frequent models we supplied for our clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
| SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The hydraulic scissor lift can be customized as your detailed size. | |||||
